Manual MK22 V1.09E
Manual MK2 PDF
Manual MK1 PDF (in German)
FLK Driver (for Win XP)
- USB Firmware Loader for PC and Mac. more...
Improved compatibility with external software.
Improved linearization of continuous controller inputs (Pedal)
- Patented FLK Light Sensor Technology

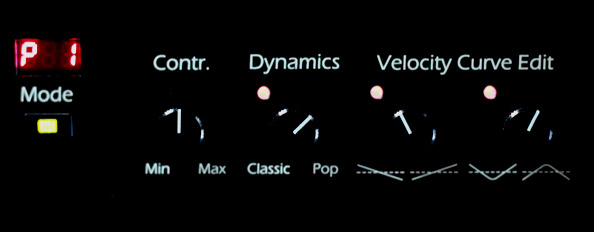

- Dynamics knob and velocity curve edit knobs.
Over 32000 different levels of note on velocity are
linearized to internal 256 MIDI values, followed by the user adjustable
dynamics knob and velocity curve knobs.
- For Hi Res linearized to minimum 4096 CC#88 values.
Unlike normal MIDI keyboard controllers implement velocity curves
shifting MIDI values and/or compressing the curve and consequently
minimize the MIDI dynamic range. the full MIDI range of 0 - 127 is
always available over the full range of the velocity curve knob.

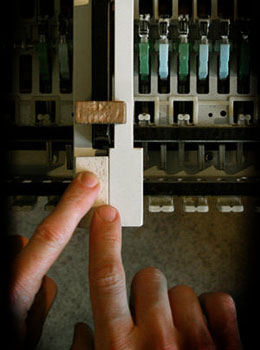

- Trigger point fine tuned to about 2/3 of key travel.
Each key is adjusted manually on each keyboard.
- Pitch and modulation wheels
- "Piano Mode" on/off possible to enable very slow key
movements that don't produce a sound like on a grand piano.
- "Waterfall Mode" on/off possible. Adjustable MIDI velocity.
- Dynamic key release velocity.
- 3 digit 7 segment display
- 4 banks of 4 presets to store your custom parameter
permanently (selectable by MIDI Program Change commands).
- Up to 4 continuous pedals.
Continuous On/off possible for pedal switches.
MK2 recognizes polarity of standard MIDI CC pedals automatically. 2-10K
Ohms for MIDI CC controllers like expression pedals.
- Inversion of pedal polarity without restart possible.
- Damper pedal input works with continuous half damper pedals.
- Stereo 1/4" jack for dual pedal and stereo 1/4" jack for
- Calibration of custom pedals on all 4 pedal inputs possible.
- MIDI trio, USB connectors.
- USB Plug´n Play. No driver neccessary.
(WIN XP shows the instrument as an audio device on the
computer, installing the WIN XP driver shows it as a FLK MIDI device.)
- Metal case, wooden sidepanels.
- Dim. in cm:
Height 13.5 plus wheels and feet
(12.7 without wheels),
length 127, width 33.5
Weight 22 kg.
- Parts like metal case, wooden side panels, electronics and
exclusively produced, manufactured and supplied by certified specialist
manufacturers from Vienna, assembled by FLKeys.
FLK keyboards are completely designed and manufactured
in Vienna (Austria)
More at Prices / Order
LACHNIT MK22 Studio
All other features are the same as MK 22.

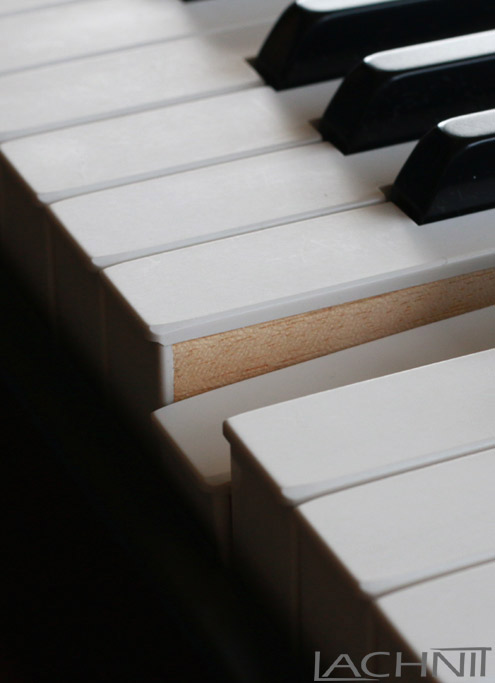

- Superior finished keys, according to specs of Vienna
Concert Grand standard: Moulded, dressed to size and polished key
edges, key surface smoothed, honed and polished.
- Channel Aftertouch Key pressure sensitivity adjustable
onboard with controller knob. Controller user configurable.
MK22 Firmware Update
Not available for former models FLK, MK1, MK2.
LACHNIT MK22 Imperial 97:
- Based on MK22 Studio but with 97 keys.
9 keys added in the bass section. A-2 to C-3
Height 13.5 with wheels and stands (12.7 without wheels), length
139, width 33.5
Weight about 25 kg
